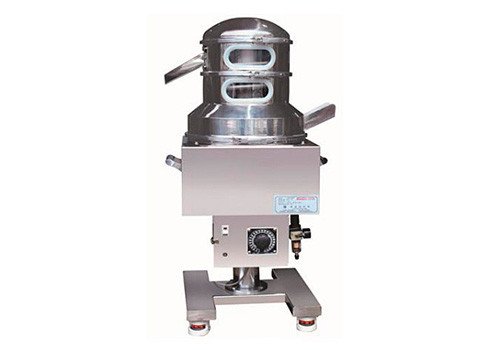

Tablet de-duster model KSTD-40 and KSTDU-60 is specially designed cleaning system, which removes powder or dust from the finished tablets, which are pressed and then discharged by vibration. Tablets turn over several times while compressed air blows off any loose dust on the tablets. It meets the most stringent requirements of GMP. Sturdy 304 stainless steel construction with acrylic housing, products Contact parts are made of STS 316L.

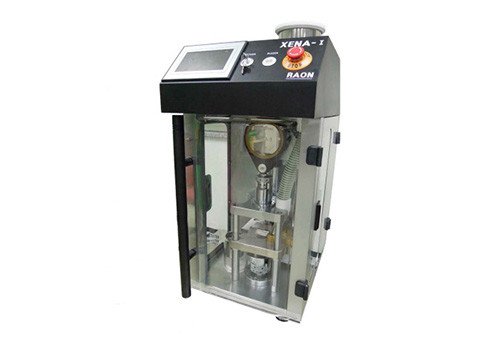

A single tablet press with an output of 2,000 tablets per hour. XENA-I is driven by a 0.75kw electric motor and 25w electric motor mounted the machine. It is furnished with a high efficiency worm gear drive, which is totally enclosed and works in an oil bath. Equipped with an automatic pressure release, which offers positive protection against the use of excessive machine pressure.
Equipped with automatic control devices for filling depth, measuring device for tableting & ejecting pressure of the tablets. Alarm and stop by interlocks as the door opened during operation. Number of stations: 6~10, max pressure: 50KN, max tablet diameter: 25mm, output: 18,000 Tablets/Hour.
High precision coating system, which is used for tablet sugar & organic, aqueous coating. PLC control system. The machine meets GMP regulations. Equipped with air control panel and electric panel.
Air powdered lift-up and down of powder, hopper is controlled via Touch screen. New design of tamping plunger holder provides easier removal and set-up of tamping plungers and easier control of inserting depth. Rigid and precise construction does not allow any inflow of foreign particles.

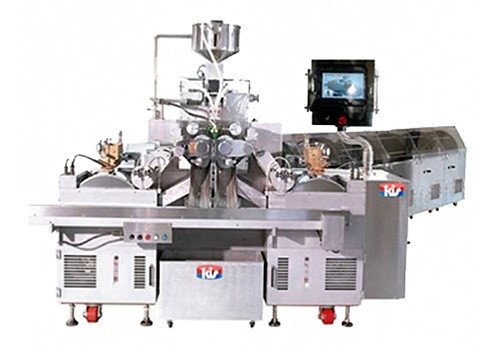

The machine is used for production of high quality soft gelatin capsules of different shapes (oval, oblong, and round) thanks to good sealing. Easy assembling, disassembling and cleaning by clamping the piping of medicine hopper with one touch way. Corresponds to GMP and FDA regulations. Production parameters can be set through the touch screen. Productivity: 71.280 capsules/h.
The machine is used for production of high quality soft gelatin capsules of different shapes (oval, oblong, and round) thanks to good sealing. Easy assembling, disassembling and cleaning by clamping the piping of medicine hopper with one touch way. Corresponds to GMP and FDA regulations. Production parameters can be set through the touch screen. Productivity: 111.600 caps/h.
Machines of these models are used in pharmaceutical industry and they automatically sort out any kind of defective faulty capsules. The capsule size can be freely adjusted for sorting work with high precision, the sorting is performed by capsule diameter and the sorting size limit is 0 ~ 24mm. Productivity depends on the model and varies between 80,000 and 800,000 capsules per hour.
