Bottles transferred by the carrying guideway and separated with the same distance, the photoelectric sensor catches bottles passing by and send out the signal. After getting the signal, the driving system starts to send the label. Then it is coded by the coding machine. In this way the entire label sticking process is accomplished.

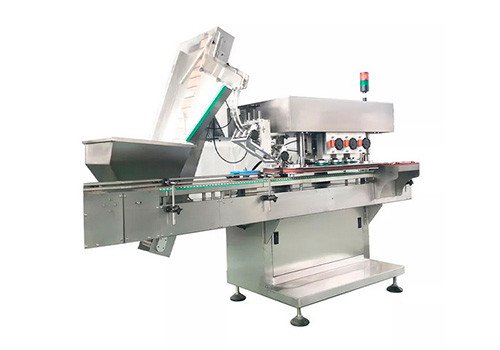

Through the cap sorting system, the facing up caps are continuously sent to the capping track, and bottles from the previous equipment of the line enter the capping area by the conveying belt. When the bottle is clamped by the pinching device on both sides, the cap drops on automatically while moving forward. Thus capping and screwing is achieved.
The bottles with aluminum foil pass under the inductive head in order, the aluminum foil get heated after receiving the energy produced by the inductive head. The heated aluminum foil melts the plastic film compounded and adheres tightly to the bottle mouth to obtain a sealing effect.

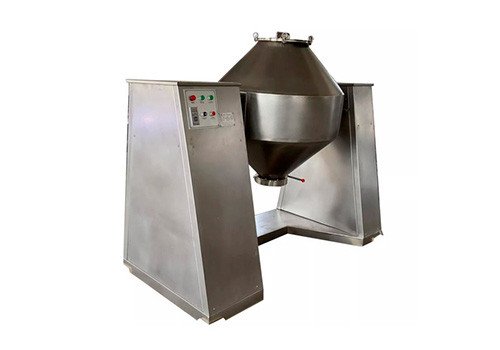

Composed by two symmetrical cone, the materials inside can move in both transverse and longitudinal directions. The evenness degree reaches more than 99%. Double-cone mixer is a new type, high-efficiency, fine container rotating and stirring-type mixing equipment, which is used for uniform mixing of various powdery and granular materials.

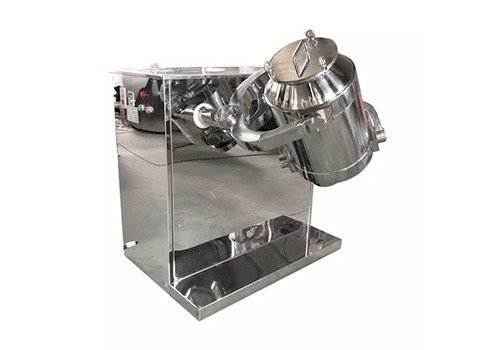

Characterized by the highest mixing rate (more than 99.9%) and the high filling rate of the mixing barrel (up to 75-80%, only 40% for common mixer), it is a machine widely used in high uniformity mixing of powdered and granular materials in pharmaceutical, chemical, food, and various scientific research units. Mixing charging volume is 40 L.

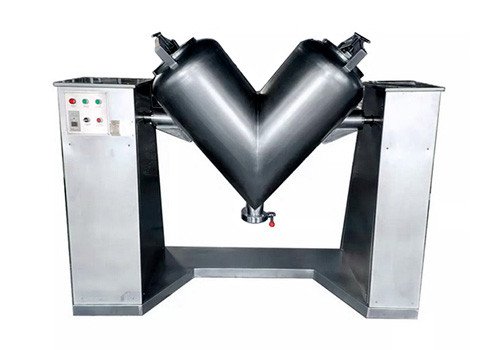

This machine is suitable for pharmacy and other industries, used for mixing the dry granule materials. It adopts manual feed and closed disc valve discharge, which can avoid dust spilling; with unique mixing barrel structure, high efficiency blending, and no dead angle. Using stainless steel material, prevent the mixing materials from being polluted.
The motor drives the sorting flower plate. The bottles in the container begin to rotate from the under part to the upper part of the bottle sorting plate by the semicircle groove of plate and the guiding rod. The bottles in the semicircle groove are picked up continuously by the plastic turning strips, which are fixed on the bottle exit, turning around constantly. Then all the bottles, with mouth up, move in order along the conveying belt to the filling station.
