The machine is mainly used for cleaning glass bottles and PET bottles. It suits for full-automatic bottle cleaning before filling of wine and beverage manufacture. Capacity is up to 4,500 BPH. Applicable bottle diameter must be within 60 – 100 mm, bottle height — 160 – 320 mm.
The machine is automatic mantle heat-shrink packing machine, and it is widely used for square, round, flat shape bottle plastic film shrink packing in beverage, food, medicine, chemical industry, without bottom bracket, without carton boxes, packing perfectly, low cost and easy to transport. Capacity is 6 – 15 BPH.
This machine is specially designed for wide-mouth bottles capping with screw cap, such as fermented bean curd bottles, pickle bottles, flesh bottles. The machine use straight into the bottle, can automatically arrange lid, sleeve lid and capping. Operation simple, production speed fast, this machine is a multi-purpose machine.
This machine is suitable for making a supplemental capping after aluminum foil, due to the hot melt generated, caps will be loose, and after supplemental capping it will make sure, the lid is tighter. Can be equipped with the aluminum foil.
The machine is designed for capping canned food, beverage, condiment, medicine and chemical products. This machine is applicable for both vacuum sealing and non-vacuum sealing. Applicable bottle diameter must be within 40 - 85 mm, bottle height must be within 65 - 260 mm. Cap diameter must be within 30 - 85 mm. To operate the machine needs hot steam under pressure of 0.4 MPa.
The machine is used to sort the polyester bottles, and the scattered bottles are sent to the bottle unscrambler through the hoist. Capacity is up to 12,000 BPH. Applicable bottle diameter must be within 45 – 90 mm, bottle height — 75 – 240 mm. To operate the machine needs compressed air supply with a pressure of 0.6 - 0.8 MPa.
The machine combines the bottle infeeder machine and unscramble bottle machine. It can be used with filling production line. Capacity is up to 12,000 BPH. Applicable bottle diameter must be within 45 – 90 mm, bottle height — 75 – 240 mm. To operate the machine needs compressed air supply with a pressure of 0.6 - 0.8 MPa.
This rotating bottle feeder machine uses eccentricity from disc rotation, it will send the bottles to the conveyor under the action of bottle guide board, then into the next process. This machine is suitable for Φ30-100 mm cylindrical shape bottles unscrambler. Machine uses frequency to adjust speed, the whole machine use SS304 and with long durability. Unscrambler speed can achieve 7,000 bottles/hour.

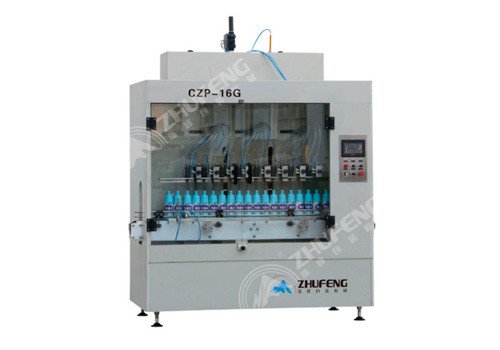

Designed for aggressive liquids filling. Contact liquid parts use anticorrosive non-metallic material and with diving function, they can effectively eliminate the bubbles. PLC controlled, parameters are set via HMI on a touchscreen. Applicable bottle diameter must be within 40 – 100 mm, bottle height must be within 60 – 300 mm. To operate the machine needs compressed air supply with a pressure of 0.6 - 0.8 MPa. Capacity is 7200 BPH.

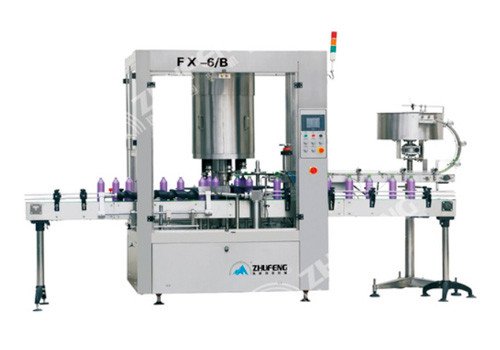

Designed for capping bottles with food, pharmacy, daily chemical, fertilizer and chemical, it has 6 mechanical hands, can automatically send bottles, arrange lids and cap bottles with lids. Applicable bottle diameter must be within 45 – 100 mm, bottle height — within 80 – 280 mm. To operate the machine needs compressed air supply with a pressure of 0.6 - 0.8 MPa.
