Suzhou Labelong Packaging Machinery Co.,Ltd

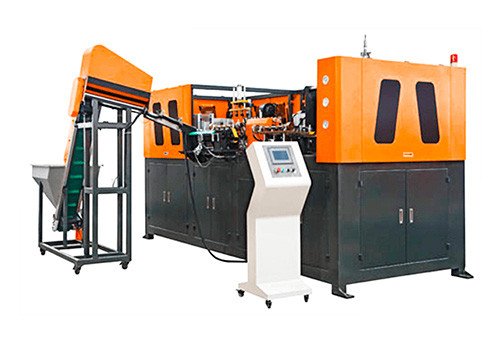

The Machine produces PET bottles for water, carbonated drinks, milk, oil, pharmacy, and daily chemicals. Production capacity for 500ml bottles ranges from 5,000 to 36,000 bottles/hour depending on model (RFC-W14 to RFC-W72). Features servo motor drive, energy-efficient (saves up to 30kW/h), mold change within 30 minutes, and compact design. No low-pressure air compressor required. Suitable for bottle standards 150-300mm, cap diameter Φ25-50mm, filling pressure 0.2-0.3MPa, gravity constant pressure filling.

The Machine produces PET bottles up to 2L. Theoretical output 1600-2000 pcs/h, 2 cavities. Features double crank clamping structure, linear guide, photoelectric safety device, and isolated gas control. Power 50kW (actual consumption 25kW), 380V/3-phase/50Hz, air compressor 1.2m³/min, water chiller 5HP. Blower dimensions 1630x620x1590mm/650kg (2 sets), heater 1780x570x1380mm/350kg. Suitable for bottles with max neck diameter 80mm, max diameter 110mm, max height 365mm.

The Machine produces large PET bottles up to 20L. Theoretical output 100-220 pcs/h, 1 cavity. Features double crank clamping structure, linear guide, photoelectric safety device, and isolated gas control. Power 34kW (actual consumption 11kW), 380V/3-phase/50Hz, air compressor 1.6m³/min, water chiller 5HP. Blower dimensions 2140x730x1770mm/950kg, heater 2660x670x1590mm/550kg.

The Machine produces PET bottles up to 1.5L. Theoretical output 1200-2000 pcs/h, 4 cavities. Features double crank clamping structure, linear guide, photoelectric safety device, and isolated gas control. Power 23kW (actual consumption 8kW), 380V/3-phase/50Hz, air compressor 1.2m³/min, water chiller 3HP. Ideal for beverage and daily chemical industries. Energy-saving design. Easy mold installation. Health inspection compliant.

The Machine produces up to 2L (2-cavity) or 5L (1-cavity) bottles. Theoretical output 900-1000 pcs/h. Features double crank clamping, linear guide, photoelectric safety, and isolated gas control. Max neck diameter 80mm, max bottle diameter 110mm, height 365mm. Energy-saving design. Easy mold installation. Ideal for beverage and daily chemical industries. Health inspection compliant.

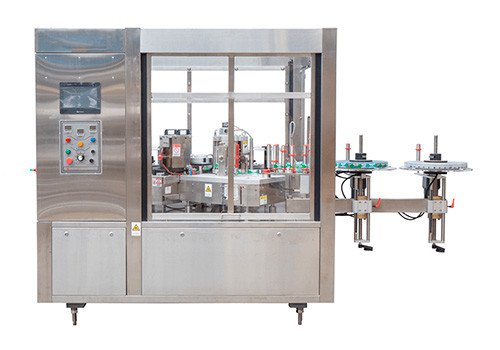

The Machine applies OPP labels to plastic, glass, or metal containers for food, dairy, personal care, and home care products. Speed 50-200 bottles/min, bottle diameter 50-106mm, label length 10-300mm, junction line error ±1.5mm. Features PLC control, no bottle no label, hot sol glue system, and 304 stainless steel/T6 aluminum construction. Power 6-8KW, AC 3-phase 220-380V. Ideal for sauces, drinks, yogurt, detergent, cosmetics, and more. Automatic stop for pasting failure.

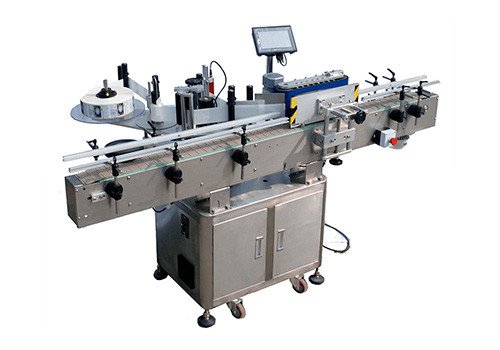

The Machine applies self-adhesive labels to round, square, flat, and cone PET or glass bottles for food, beverage, wine, spices, cosmetics, and chemical industries. Speed 50-150 BPM (500ml), label width 10-200mm, length 10-400mm, precision ±1mm, bottle diameter 10-150mm. Features PLC control, touchscreen, photoelectric positioning, no bottle no label, and 304 stainless steel construction. Can integrate with filling lines or operate independently. Conveyor height adjustable. Ideal for round bottle labeling.

The Machine bundles bottles and packages for food, beverage, medicine, and cosmetics. Speed 3-4 packs/min, max packing size 420x400x350mm. Features PLC control, touchscreen, double air blowers, and stainless-steel heating. Power 22KW, 380V 50Hz. Tunnel size 2530x920x1800mm. Handles 6-24 bottles per pack. Suitable for PE/PVC film. Ideal for multi-pack bundling.
