Zhejiang Aligned Technology Co.,Ltd.

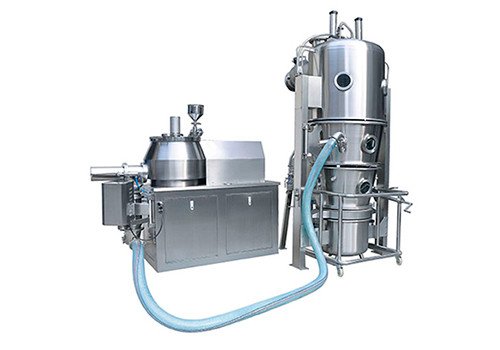

The machine fully complies with GMP pharmaceutical requirements, featuring low consumption, no pollution, security. It can complete the process of mixing, humidify-ing, granulating and other at one time，suitable for pharmaceutical, food, chemical and other industries. It is 4-5 times more productive than the traditional process, which is reflected in about 2 minutes of dry mixing and 1-4 minutes of granulation for each batch.

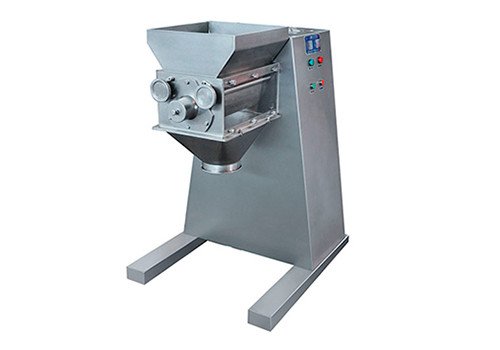

This machine can make the mixed powder into granules, and can also pulverize the block dry material into the desired granules. It is suitable for granulation of dry bulk raw materials in the pharmaceutical, chemical and food industries and other irregular granules produced by granulation to increase fluidity. It is also suitable for re-granulation of unsatisfactory tablets.

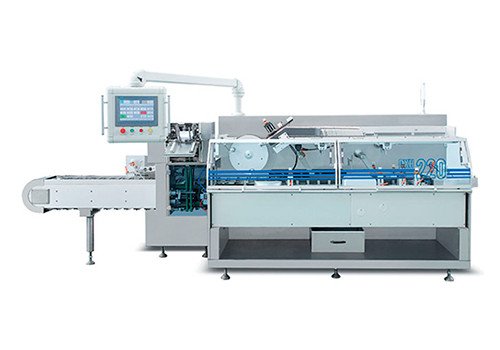

This is a type of packaging machine used to package products into cartons or boxes for transportation and storage. Suitable for automatic packaging of items, such as Alu, PVC blisters, bottle shapes, ointments, etc. To operate the machine needs compressed air supply of at least 0.6 MPa.

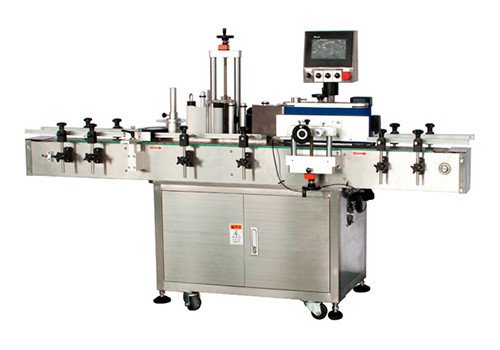

This machine is for labelling round bottles. It has a simple and reasonable structure, which is easy to operate. The production capacity shall be adjusted steplessly accord-ing to the different sizes and characteristics of the bottles and the label papers. It can be applied to the various bottles for food, medicine, cosmetics, etc. Applicable bottles must be within 20 – 45 or 30 - 70 mm in diameter.

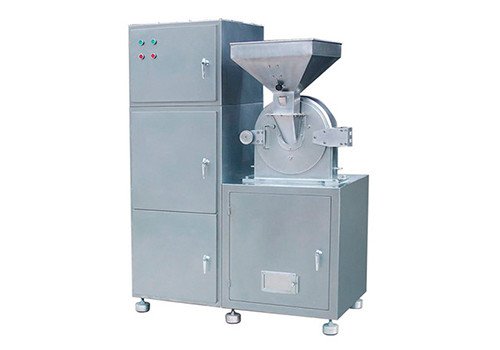

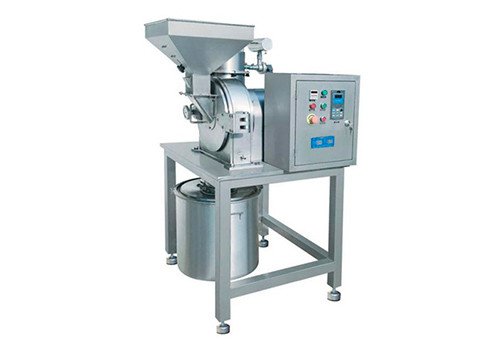

The unit utilizes the relative movement between the movable toothed disk and the fixed toothed disk to crush the materials through tooth impact, friction and the impact between the materials. The crushed materials will automatically enter the replenish-ment bag under the action of the rotating centrifugal force, and the dust will be re-covered by the dust collection box through the cloth bag filtration. The machine is designed according to the GMP standard and is all made of stainless steel.

The machine is suitable for pharmaceutical, chemical, food and other industries to crush dry brittle materials. They enter the crusher cavity from the feeding hopper, and are thrown from the center to the crusher cavity wall by the centrifugal force generated by the high-speed rotation of the movable toothed plate. Finally, the fine particles are discharged from the bottom through the sieve plate.

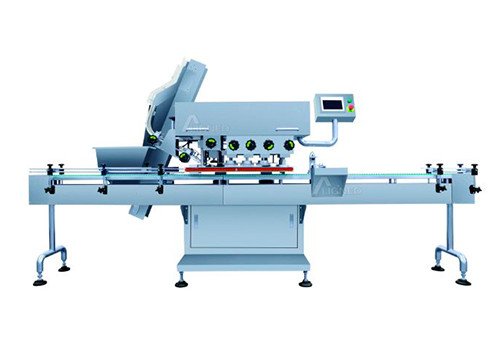

The machine is used for plastic/glass bottles capping. The machine is composed by a conveyor, bottle index wheel, cap unscrambler, cap chute &placer, screwing capper. The bottle loading/unloading through conveyor manually, or automatic directly from a production line. It is designed and made accordance to GMP regulation. Applicable bottles must be within 20 – 150 mm in diameter.

This machine is suitable for capping various kinds of vessels (round type, flat type, square type) and widely used in such fields as pharmaceutical, foods, chemistry, etc. The machine works reliably and operates easily. When a bottle already filled with materials enters the entry of the main machine, the cap drops through the cap feeder rail and covers the bottle. Applicable cap diameter is 25 – 70 mm, applicable vessel diameter is 35 – 140 mm.

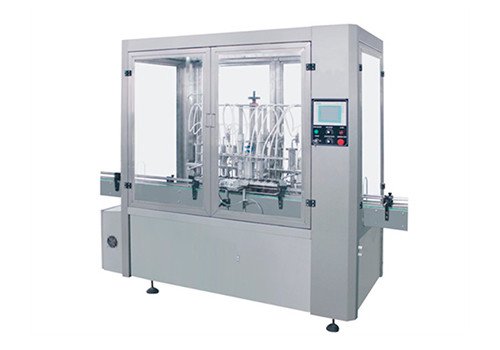

This machine is designed for application of light liquid filling into plastic or glass bottles. The machine is composed by a conveyor, SS316L volumetric piston pump, top-bottom filling nozzles, liquid buffer tank and bottle indexing system. The bottle loading/unloading through loading/unloading turntable or directly from a production line.

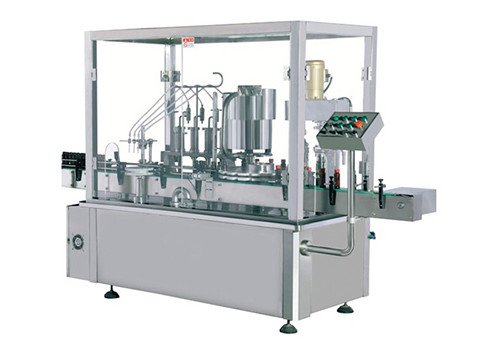

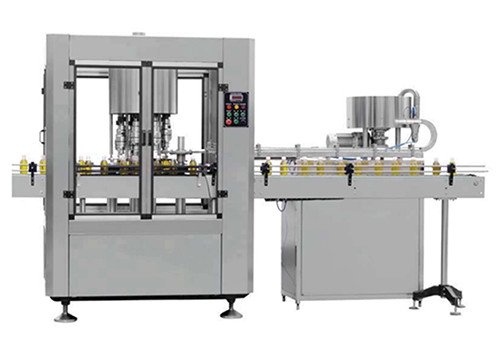

The machine is customized for bottle liquid filling and plastic screw cap capping (al-ternative alum. seaming). The machine is composed by a wide in-feed conveyor, SS316L volumetric piston pump with servo system, track top-bottom filling nozzles, liquid buffer tank, bottle index wheel sets, rotary turret, capping assembly etc. Filling volume is 20 – 1,000 ml.
