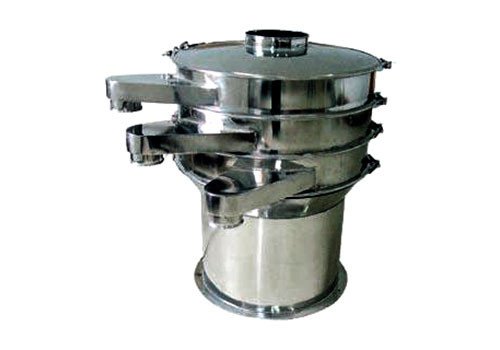

The machine consist of hopper, vibrating chamber, coupler and motor. There are eccentric wheel, rubber software, main shaft and shaft-bearing in the vibration chamber. The adjustable eccentric hammer is driven to the center line through the motor, cause centrifugal force under the state of unbalance and so that the materials form regular eddy.

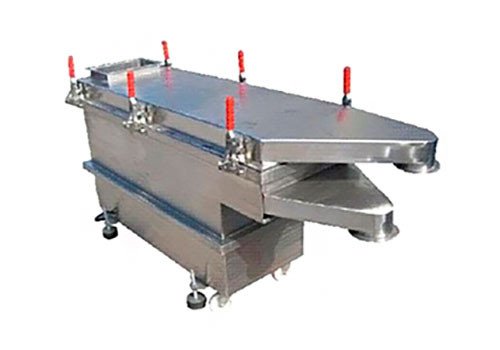

The Machine consists of screen box at material inlet and outlet, vibrator and shock absorber. There are 4-6 sets of flexible rubber shock absorber connected between base and screen box in up-down order. Centrifugal force is generated upon starting the machine.

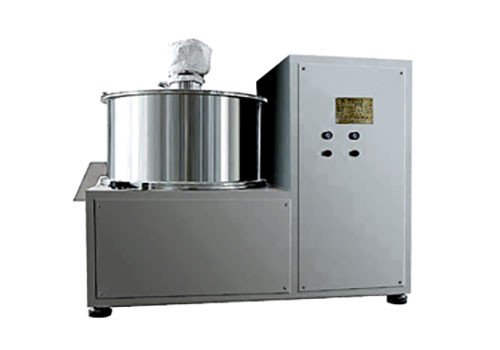

This machine makes damp granule into beautiful pellet by setting rotating centrifugal disk, lower, and pneumatic nozzle. Feed damp granule into rotating centrifugal disk, start fan then start rotating centrifugal disk. It can make the damp granule in float and circle by the air from gap, rotating centrifugal strength and itself gravity, appear circle rope-turning movement and become high-degree ball shape pellet.
The machine is suitable for mixing the powder and grain state materials in pharmacy, chemical, food, building material and other industries. The powder is loaded through the vacuum conveyor for the machine. It can be loaded manually as well. It is energy saving, easy for operation, the labor intensity is low, and the working efficiency is high.

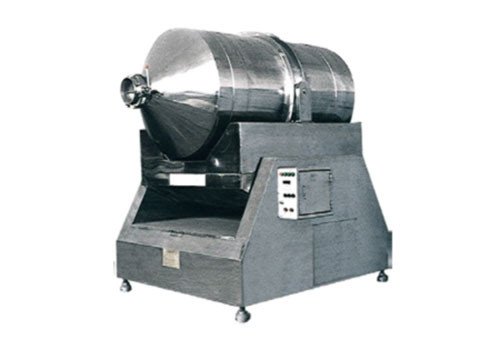

This mixer mainly consists of three big parts, rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and its axial fixation is done by two stop wheels. Two of the four wheels are driven by rotating system to make the cylinder rotate.
The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specific gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is high. The machine is the desired one of various mixers at present.

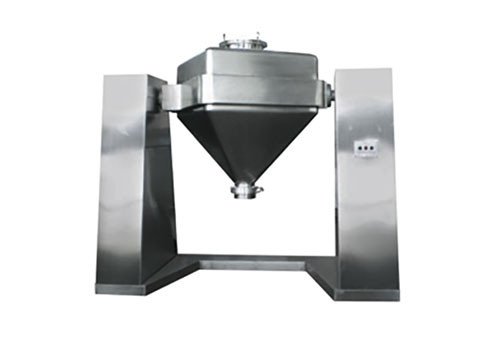

Materials are charged into a closed square-cone mixing barrel, the symmetrical axes of hopper and the axes of rotating shaft form an included angle, materials with different constituents are strenuously rolling over in the closed hopper and producing high shear to achieve the best effect of mixing.

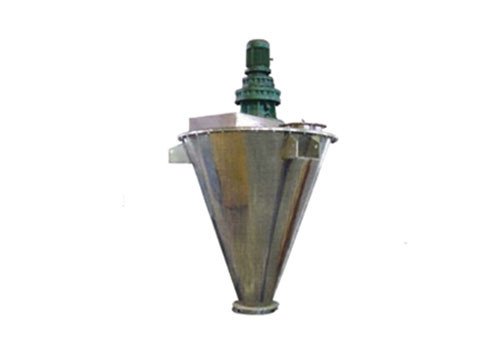

The Self-rotation of this machine is achieved by a set of motor and cycloid pinwheel reducer, non- Symmetry blending is achieved by two sets of screws as to let the large area mix and have fast mixing. It is especially used for mixing the materials with big difference of bulk density and mixing proportion.

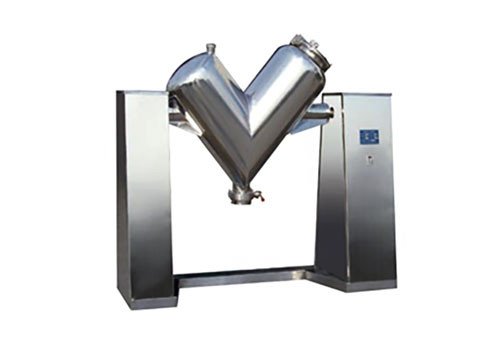

The mixer is used for mixing the dry material grains in medical, chemical, food, metallurgical and other industries. The structure of mixing barrel is unique. The mixing efficiency is high, no dead corner. The barrel is made of stainless steel and its internal walls are polished. The outside appearance is beautiful. The mixing is uniform, with widely application, meets GMP standard.

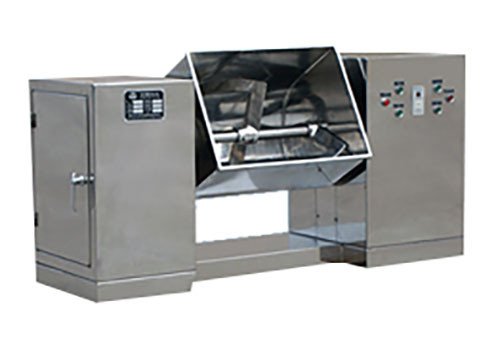

CH type mixer is widely used for mixing powder or wet raw materials and can make the main and auxiliary raw materials with different proportion uniform. It can prevent from the raw material leakage. It is widely used in pharmaceutical, chemical, foodstuff and so on industries.
